Camlock Couplings Explained means understanding more than how a quick-connect fitting opens and closes. For industrial buyers, the correct coupling also depends on connection type, body material, nominal size, thread standard, gasket compatibility, pressure, temperature, and the actual working environment.
Camlock couplings, also called cam and groove couplings, provide a fast way to connect and disconnect hoses, pipes, tanks, pumps, and other fluid-handling equipment. Their cam-arm locking design removes the need for repeated thread rotation or multiple bolts, which makes them practical for systems where hoses are frequently connected, removed, cleaned, or replaced.
However, two camlock fittings with the same nominal size may still be unsuitable for each other. Differences in coupling type, NPT, BSP or BSPT threads, stainless steel grade, gasket material, or OEM dimensions can all affect fit and service performance.
This guide explains how camlock couplings work, how Types A through F differ, how to compare common materials such as 304, 316, CF8 and CF8M, and what industrial buyers should confirm before ordering standard or custom camlock components.
Camlock Couplings Explained: How the Connection Works
A basic camlock system consists of a male adapter and a female coupler. The male adapter has a circumferential groove, while the female coupler contains two cam arms. When the adapter enters the coupler, the operator pushes the cam arms downward. Their cam surfaces move into the groove and pull the two halves together.
A gasket inside the female coupler contacts the adapter face and provides the sealing interface. A typical assembly therefore includes the adapter, coupler body, cam arms, pins, and gasket.
This design eliminates the need to rotate an entire hose or tighten several bolts every time the connection is opened or closed. It is especially useful on equipment where hoses are removed for transfer, cleaning, maintenance, or product changes.
Before disconnecting a camlock, the line should be placed in a safe condition and any hazardous pressure released. A quick-connect design does not mean the fitting is suitable for every operating condition. Pressure, temperature, gasket compatibility, and manufacturer limitations still need to be checked for the complete system.
Terms such as camlock fitting, cam coupling, cam and groove fitting, and quick coupling are often used for the same general connection principle. Actual dimensions and operating limits can still vary by manufacturer, size, material, and design.
Camlock Couplings Explained: Types A to F, Dust Caps and Dust Plugs
Camlock types are identified mainly by the combination of the cam-and-groove end and the connection on the opposite side. Types A through F are used to connect hoses, pipes, and equipment, while dust caps and dust plugs close exposed coupling ends when the system is not connected.
| Type | Camlock End | Opposite End | Common Function |
| Type A | Male adapter | Female thread | Connects a male threaded port to a camlock system |
| Type B | Female coupler | Male thread | Connects to equipment with a female threaded port |
| Type C | Female coupler | Hose shank | Connects flexible hose to a male camlock adapter |
| Type D | Female coupler | Female thread | Connects threaded equipment to a male adapter |
| Type E | Male adapter | Hose shank | Adds a male camlock end to flexible hose |
| Type F | Male adapter | Male thread | Connects a female threaded port to a camlock coupler |
| Dust Cap / DC | Female coupler | Closed end | Covers an exposed male adapter |
| Dust Plug / DP | Male adapter | Closed end | Closes an exposed female coupler |
Types C and E are frequently used on hose assemblies because both include hose shanks. Type C provides the female coupler and cam arms, while Type E provides the male adapter.
Types A, B, D, and F connect camlock systems to threaded equipment. Buyers therefore need to confirm both the camlock configuration and the thread gender. Correct nominal size alone is not enough if the connection arrangement is wrong.
Dust caps and plugs are mainly intended to protect open connections from dirt, moisture, and other contamination. They should not automatically be considered pressure-retaining closures unless the specific product is designed and rated for that function.
For custom OEM equipment, letter designations may provide only part of the specification. Special dimensions, locking features, thread arrangements, body geometry, or arm designs may require a customer drawing to serve as the final production reference.
Choosing the Right Camlock Body Material
Camlock couplings are commonly manufactured from stainless steel, aluminum, brass, and polypropylene. Each material offers a different balance of corrosion resistance, weight, mechanical strength, temperature capability, and cost.
| Material | Main Advantage | Main Limitation | Typical Applications |
| Stainless Steel | Strength and good corrosion resistance | Higher weight and cost than aluminum or plastic | Chemical, food, marine and industrial systems |
| Aluminum | Lightweight and economical | Not suitable for every chemical environment | Water transfer, agriculture and general hose systems |
| Brass | Durable and corrosion resistant in suitable media | Relatively heavy | Water, marine and selected industrial applications |
| Polypropylene | Lightweight with useful chemical resistance | Lower mechanical and temperature capability | Chemical, agricultural and water systems |
There is no single best material for every camlock application. The correct selection depends on the complete operating environment.
Stainless steel is frequently selected when corrosion resistance, cleaning, mechanical durability, or service life is important. Aluminum provides significant weight savings and can also reduce cost in compatible water, agricultural, and general transfer systems. Brass remains practical for selected water and marine uses, while polypropylene can provide useful chemical resistance where mechanical loads and temperature remain within its suitable range.
Material compatibility should always be evaluated as part of the entire connection. A corrosion-resistant coupling body cannot compensate for a gasket, hose, or mating component that is incompatible with the same fluid.

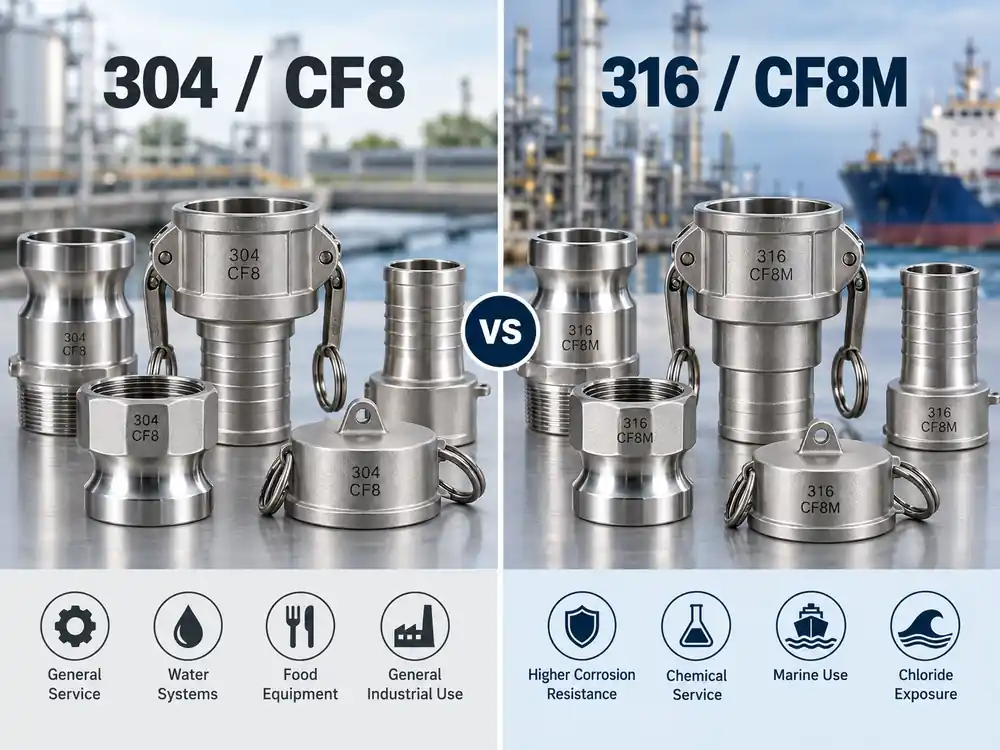

304, 316, CF8 and CF8M Stainless Steel
Industrial buyers specifying stainless steel often compare 304 and 316. For cast components, the corresponding project specifications may instead call for cast grades such as CF8 and CF8M.
304 stainless steel provides good general corrosion resistance and is commonly used in water systems, food equipment, and ordinary industrial environments where chloride exposure is limited. 316 contains molybdenum, improving corrosion resistance in many more aggressive environments and making it a common choice for chemical equipment, marine applications, and systems exposed to chlorides.
For investment cast camlock bodies, CF8 is commonly used in applications broadly comparable to those using wrought 304, while CF8M serves many applications that otherwise use wrought 316. These are cast grades rather than identical versions of the wrought materials, so the required material standard and grade should always be stated on the drawing or purchase specification.
| Grade | Form | General Positioning | Common Selection Reason |
| 304 | Wrought stainless steel | General corrosion resistance | Water and general industrial service |
| CF8 | Cast stainless steel | Common cast grade for general service | Investment cast coupling bodies |
| 316 | Wrought stainless steel | Higher corrosion resistance | Chemical, marine and chloride exposure |
| CF8M | Cast stainless steel | Higher-resistance cast grade | Chemical and industrial fluid castings |
Selecting the more expensive grade does not automatically improve purchasing value. If 304 or CF8 already meets the operating conditions, moving to 316 or CF8M may increase cost without providing a useful service advantage. Fluid composition, chloride concentration, cleaning chemicals, temperature, and expected life should guide the final decision.

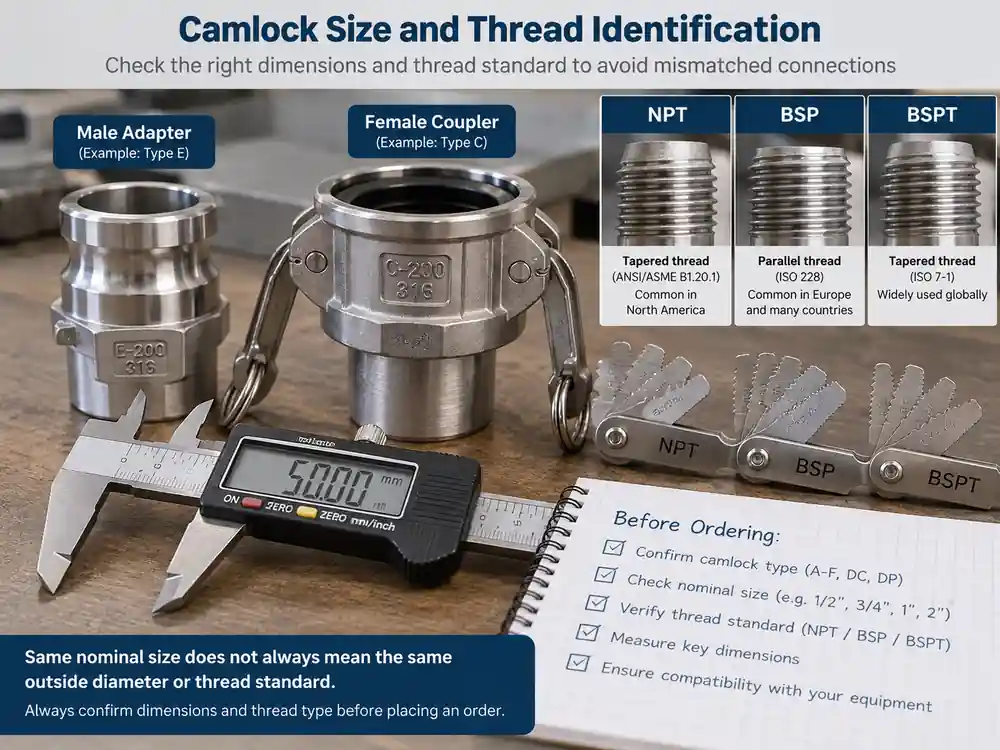

Camlock Couplings Explained: Sizes, Dimensions and Fit
Camlock sizing can create problems when buyers rely only on an outside measurement. The nominal coupling size, mating camlock end, hose diameter, and threaded connection all need to be confirmed together.
For a hose assembly using Type C, for example, the female coupling must match the corresponding male adapter while the hose shank must also suit the required hose inside diameter.
Industrial camlock systems are available across a broad range of hose and pipe sizes, although the exact range depends on the manufacturer, material, and product design.
Replacement parts require particular care. Two components that appear to have the same nominal size are not automatically interchangeable if their dimensional systems or special OEM features differ. A drawing, manufacturer part number, or approved sample gives a more reliable reference than a simple outside measurement.
Camlock Couplings Explained: NPT, BSP and BSPT Thread Connections
Threaded Types A, B, D, and F introduce another important specification: the thread standard.
Common industrial options include NPT, BSP, and BSPT. These thread systems are not interchangeable merely because their nominal pipe size appears similar. Their geometry and sealing arrangements differ, so specifying the correct standard is essential.
When preparing an RFQ or replacement order, buyers should confirm:
- Camlock type and nominal size
- Male or female thread arrangement
- Required thread standard
- Hose size where applicable
- Existing drawing or approved sample
- Any special OEM dimensions
This small amount of specification work can prevent a complete batch from becoming unusable because of a connection mismatch.
Where Camlock Couplings Are Commonly Used
The ability to connect hoses quickly has made camlock systems common across many industries. Their actual suitability still depends on body material, gasket, pressure, temperature, and working fluid.
| Industry | Typical Use |
| Chemical Processing | Transfer of compatible chemicals and process liquids |
| Food Processing | Liquid transfer and equipment-cleaning hose connections |
| Water Treatment | Pumps, tanks, filtration and temporary transfer systems |
| Agriculture | Water, irrigation and compatible fertilizer transfer |
| Industrial Fluid Handling | Hose, tank and pump connections |
| Marine | Fluid transfer where corrosion resistance may be required |
| Mining & Construction | Dewatering and temporary hose systems |
A fitting commonly used in one industry should not automatically be considered suitable for every fluid within that industry. A stainless steel body may perform well while an incorrectly selected gasket fails under the same chemical exposure.
Pressure and temperature can also change the safe working range. Selection therefore needs to consider the entire connection rather than only the camlock body.
Camlock Couplings Explained:A Practical Camlock Selection Checklist
A useful purchasing method is to work from the connection requirements outward instead of beginning with price. For most industrial applications, buyers should confirm the following points before ordering:
- Connection configuration: Determine which side requires the male adapter and which requires the female coupler. Then identify whether the opposite end connects to hose or threaded equipment.
- Nominal size: Confirm the camlock size together with the connected hose or pipe dimensions.
- Body material: Select stainless steel, aluminum, brass, or polypropylene according to fluid compatibility, corrosion conditions, strength, weight, and cost.
- Thread specification: For threaded designs, verify NPT, BSP, BSPT, or another required standard as well as thread gender.
- Gasket compatibility: Match the gasket material to the chemical, oil, cleaning fluid, temperature, and other operating conditions.
- Pressure and temperature: Check the rating of the complete assembly, including the coupling, hose, gasket, clamps, and connected equipment.
The lowest-priced fitting is not necessarily the lowest-cost choice if it corrodes prematurely, does not fit existing equipment, or requires replacement because the material or seal was incorrectly specified.

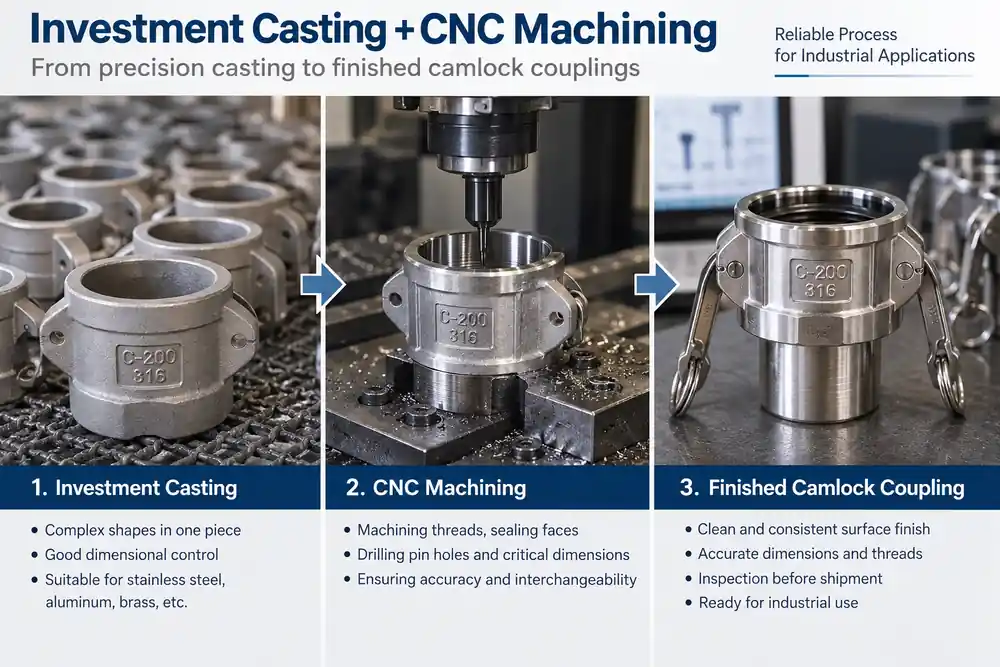

Why Many Stainless Steel Camlock Bodies Use Investment Casting
The geometry of a stainless steel camlock body is well suited to investment casting. A single component may contain cam lugs, grooves, curved transitions, hose-shank features, connection ends, and changing wall thickness.
Investment casting can form much of this geometry close to the required final shape. This reduces the amount of stainless steel that must be removed later compared with machining the entire body from solid material.
Machining still plays an important role. Rather than attempting to cast every feature to a tight tolerance, manufacturers can cast the complex body geometry and then CNC machine the areas that control assembly and sealing.
Typical machined features include:
- NPT, BSP, or BSPT threads
- Internal bores
- Sealing faces
- Pin holes
- Datum surfaces
- Critical mating dimensions
This combination allows casting to create the basic form efficiently while machining provides tighter control where accuracy directly affects function.
For OEM production, the aim is not to apply the tightest tolerance to every surface. A more efficient approach is to distinguish between general cast geometry and the features that actually control fit, sealing, alignment, and assembly.
Standard Camlocks vs Custom OEM Castings
Standard catalog camlocks are suitable for many hose systems, but equipment manufacturers sometimes need dimensions or features that are not available as off-the-shelf products.
Custom requirements may involve special wall thickness, different thread configurations, modified connection geometry, specific stainless steel grades, additional machining, polishing, or inspection requirements.
JC Casting manufactures Stainless Steel Camlock Coupling Castings according to customer drawings and 3D models. Depending on the project, the manufacturing route can include stainless steel investment casting, CNC machining, thread machining, surface finishing, and dimensional inspection.
This supply model is more suitable for hose-system manufacturers, industrial fitting companies, and fluid-equipment OEMs that need a repeatable custom component rather than a standard finished coupling.
For OEM projects, the drawing remains the primary manufacturing reference. Reviewing the casting geometry and machined features together before tooling can also reduce later problems with machining allowance, threads, sealing areas, and assembly dimensions.
What OEM Buyers Should Include in an RFQ
A complete RFQ allows the foundry and machining supplier to evaluate the component more accurately. Useful information includes:
- 2D drawing and/or 3D model
- Required material grade
- Camlock type and size
- Thread specification
- Order quantity and estimated annual volume
- CNC machining requirements
- Surface finish
- Critical tolerances
- Inspection or documentation requirements
- Expected delivery schedule
Where the component replaces an existing part, an approved sample can also provide useful dimensional and functional information.
The objective of a technical review is not only to quote a casting. It is to determine how the casting, machining, material, and inspection requirements work together in the finished component.
